GABION BOX

STANDARD SIZE: 2 X 1 X 1 METER

Gabion are most commonly used as retaining walls for erosion control and to prevent slope soil from sliding or eroding. Gabion baskets can also be used to create temporary flood walls, perimeter fences, and can even be used for more creative applications, such as planters, pond surrounds and much more.Also known as gabion cages, their main use in structural engineering has been for protecting shorelines, river banks and slopes from erosion, and they're either laid at angles in “mattress” form or, more commonly, stacked incrementally like bricks.

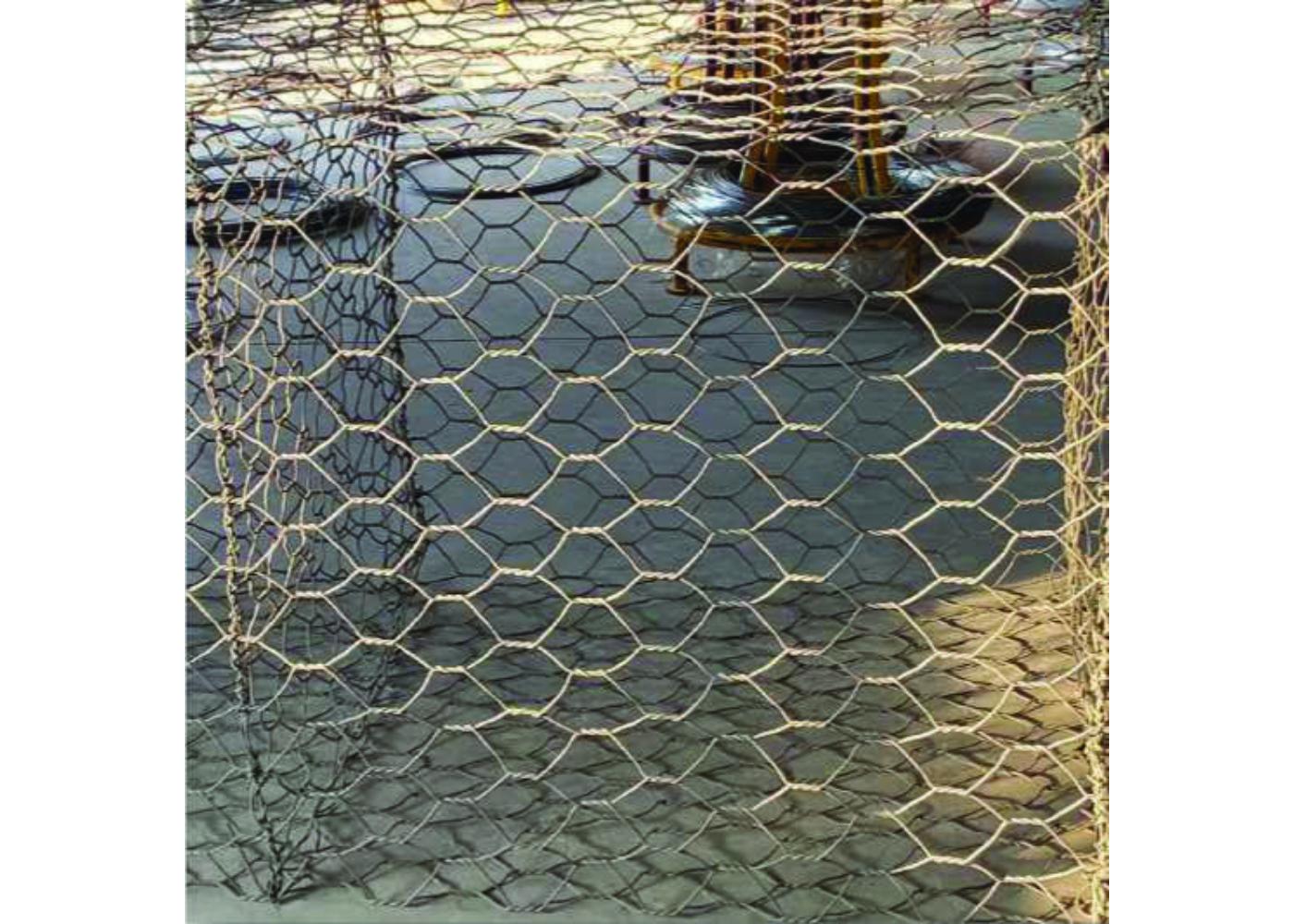

SS&RF Ltd Gabion box is hexagonal shape wire hh mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units and filled with stone at the project site to form flexible, permeable monolithic structures to protect land from erosion, construction of earth retaining structure, river embankment etc.A non-raveling mesh made by twisting continuous pairs of wire through two one half turn (Generally refer as Double Twist) to form hexagonal shape openings which are then interconnected to adjacent wires to form hexagonal openings.

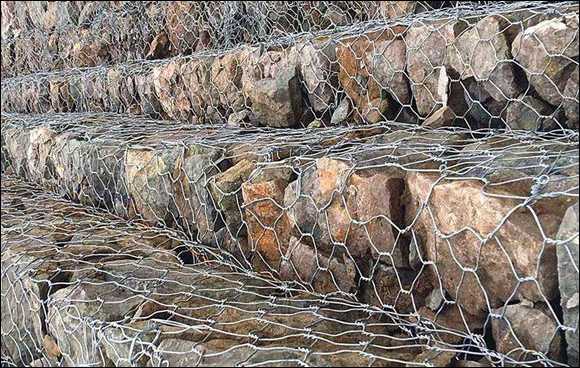

DOUBLE TWIST HEXAGONAL SHAPE GABION BOX

The Hot dip galvanised wire used to manufature the double twisted hexagonal wire mesh is soft annealed, low carbon content mild steel wire with heavy zinc coating as per IS 280, EN10224/ASTM A 641. For aggressive natural conditions, further coating of advance Polymer / Polyvinyl Chloride (PVC) is done of 0.50mm thickness uniformly.

DOUBLE TWIST HEXAGONAL SHAPE GABION MATTRESS

SS&RF LTD Revet Mattress is hexagonal shape wire mesh container of variable sizes, uniformly partitioned in to internal cells with relatively smaller height in relation to other dimensions, having smaller mesh opening than the mesh used for gabions, revet mattresses are generally used for river bank protection and channel linings. Generally the height of revet mattresses is less than 0.50 meter and it is used together to reduce the water velocity and recapture river bed sediment in streams and widely used in river course where soil erosion is a problem.

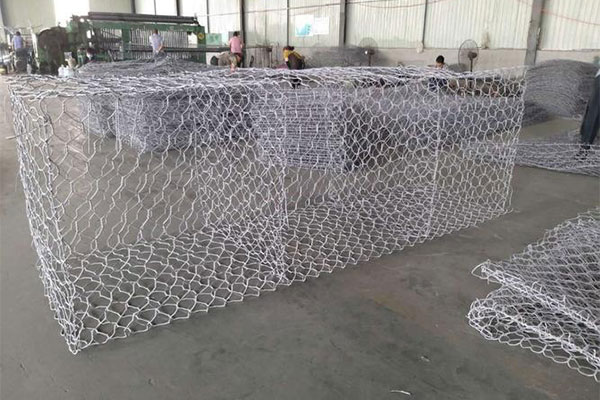

DOUBLE TWIST JUMBO GABION BOX

SS&RF Ltd Jumbo Gabion box are larger than regular Gabian Box and are ued for large scale civil engineering projects. Jumbo Gabion are similar to regular Gabion in all other aspect. Usually in Jumbo Gabion width is 1.5 meter and 2.0 meter compare to 1.o meter width in regular Gabion.

JUMBO BOX SIZE:

3.0 (L) X 1.5 (W) X 1.0 (H)/ 2 Centre Diaphragm

3.0 (L) X 2.0 (W) X 1.0 (H)/ 2 Centre Diaphragm

4.0 (L) X 1.5 (W) X 1.0 (H)/ 3 Centre Diaphragm

4.0 (L) X 2.0 (W) X 1.0 (H)/ 3 Centre Diaphragm

5.0 (L) X 1.5 (W) X 1.0 (H)/ 4 Centre Diaphragm

5.0 (L) X 2.0 (W) X 1.0 (H)/ 4 Centre Diaphragm

DOUBLE TWIST HEXAGONAL SHAPE GABION MATTRESS

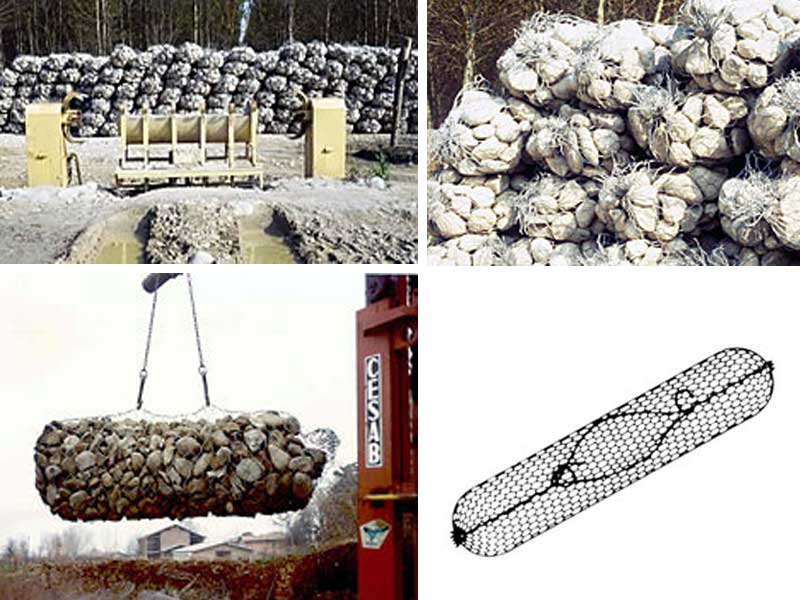

SS&RF Ltd Cylindrical/Sack Gabion is hexagonal shape wire mesh unit with a lateral opening to allow the stone filling or Geotextile encased sand filling at site. Cylindrical / Sack Gabion are generally used for river bank protection, scour protection of bridge or a situation where immediate protection is required from erosion effect of water. These cylindrical units of Gabion are filled with stone lifted into position using suitable equipment and stacked upon one another to make structure of contained rocks.
