Thickness:4320 mm x 2.7 mm

Bolts:M16 x 35 mm

Guardrail Post: 114 mmØ x 3mm x 1980 mm Long

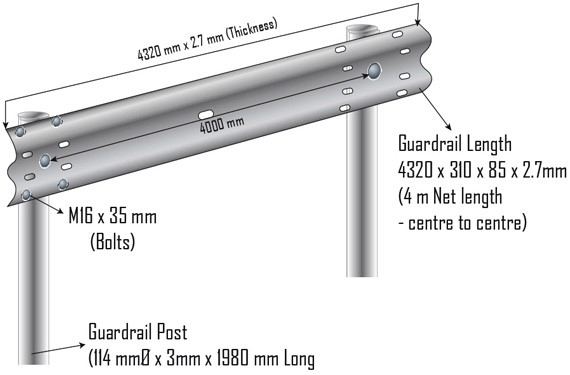

Guardrail Length :4320 x 310 x 85 x 2.7mm (4 m Net length - centre to centre)

ROUND POSTS

REFLECTORS

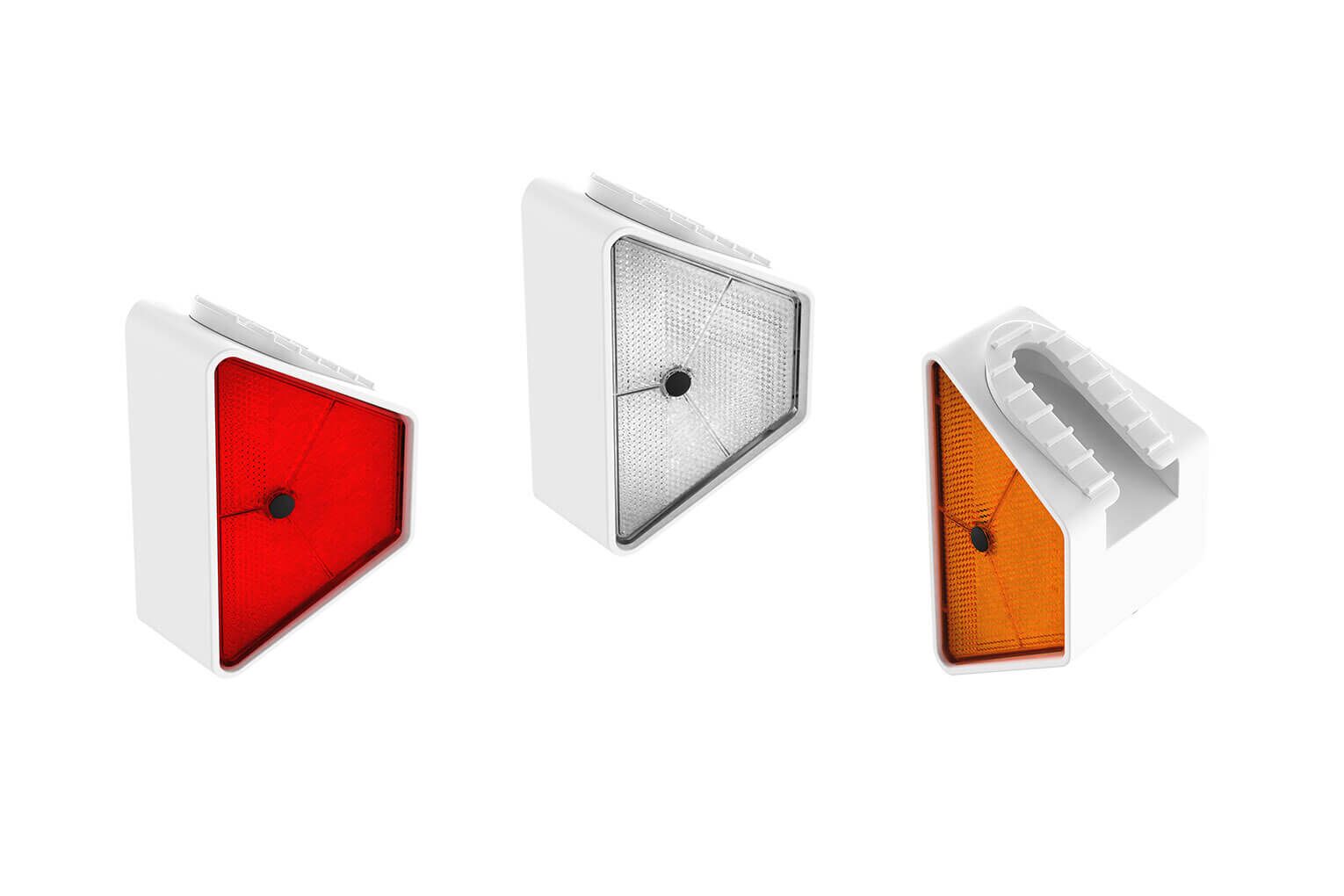

A guard rail reflector is a safety device mounted on road guardrails to enhance visibility, especially at night or in low-light conditions. It is designed to reflect headlights from vehicles, creating a clear visual boundary for drivers. These reflectors often feature two lines of reflective material—typically arranged horizontally or vertically—that significantly increase the brightness and visibility of the rail. The dual-line reflectivity helps drivers quickly spot the guardrail, reducing the risk of accidents, especially on curves or areas with poor lighting. Guard rail reflectors are essential for improving road safety, particularly in high-risk zones like sharp turns, bridge approaches, or road construction areas.

FASTENERS



Splice Bolt:L=35mm

ROUND FLAT WASHER: 16( 5⁄8") dia.

double recessed Hex Nut:160 (5⁄8")

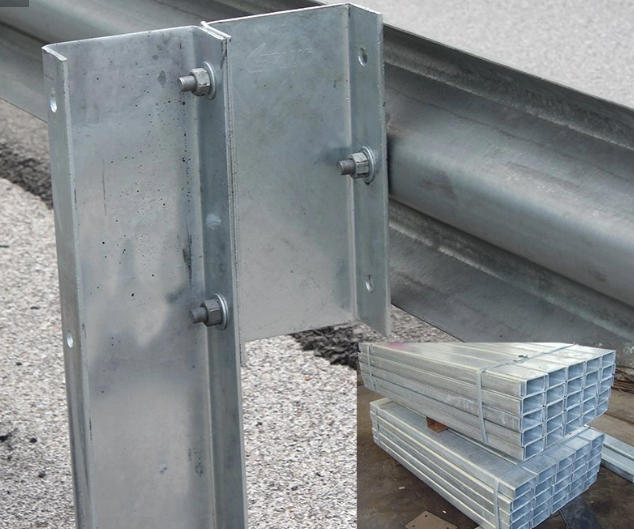

A C-type guard rail post is a key component of a road safety system designed to support and secure guard rails along highways and roads. The "C-type" refers to the shape of the post, which resembles the letter "C" when viewed from the side, providing added strength and durability. These posts are typically made of steel or other strong materials to withstand impact from vehicles. The C-shape offers enhanced resistance to bending and deformation, making it an effective choice for high-traffic or high-impact areas. These posts are installed at regular intervals along the roadside and are essential for maintaining the stability of the guard rail system, ensuring it absorbs the force of any collisions and minimizes the risk of injury to drivers.

We specialize in the supply of high-quality Bridge Bearing Pads that comply with the specifications and standards set by the Government of Kenya. Our products are engineered to support structural loads, accommodate movement, and ensure long-term durability in bridge construction and maintenance. All supplies meet the regulatory and technical guidelines required for public infrastructure projects, including those under the Ministry of Transport, Infrastructure, Housing, Urban Development and Public Works.

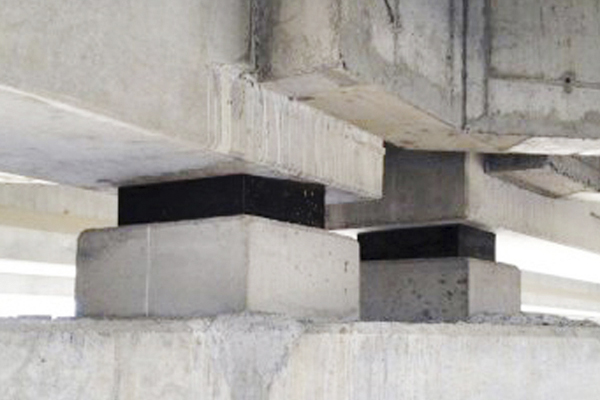

The Bridge Bearing pads are placed in between the bridge beams and the vertical supports called piers. The primary function is to absorb the load and distribute superstructure loads to the substructure and allow the superstructure to undergo necessary movements in different environmental conditions without creating any dangerous stresses. Absence of the pads will result in collapse of the bridge. Along with this, the Bridge Bearing Pads extend the life of the bridge by reducing wear and tear on bridge material.

In the Bridge Bearing pads, Steel plates are bonded to the rubber through a vulcanization process, this increases the resistance of the bearings to vertical loads. The steel plates are fully embedded along with the elastomer so that they are protected against corrosion.
